Product Description

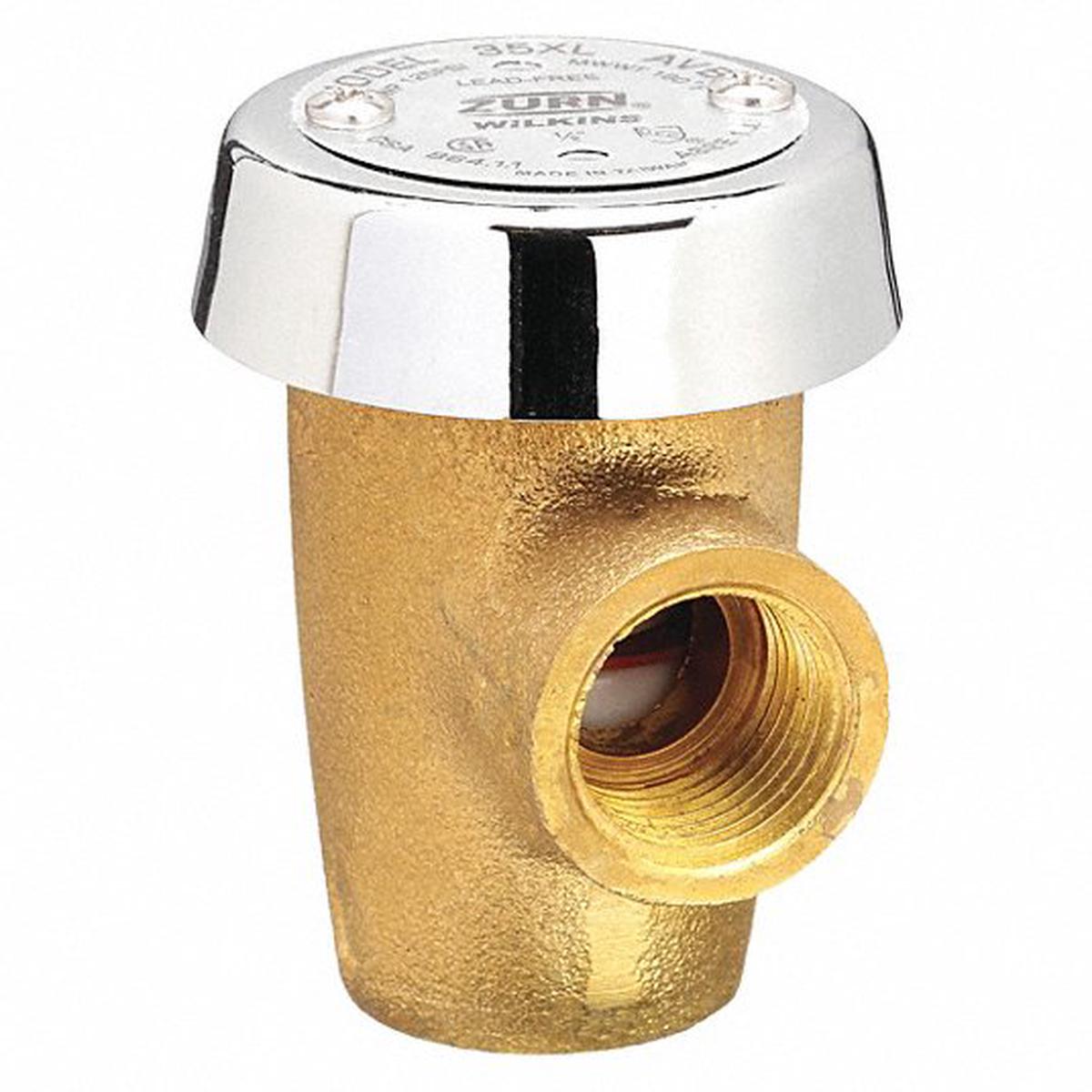

The Wilkins 12-35XL Fnpt X Fnpt Atmospheric Vacuum Breaker is ideal for use where lead-free valves are required. Designed for installation on potable water lines, it protects against backsiphonage of contaminated water into the potable water supply. The assembly provides protection where a potential health hazard exists.
- Atmospheric vacuum breaker
- Ideal for use where lead-free valves are required
- Assembly shall provide protection where a potential health hazard exists
Product Highlights
This atmospheric vacuum breaker is designed to prevent contaminants from traveling backward into the water supply.
Product Information
Standard Information
- Brand: WILKINS
- Manufacturer Part Number: 12-35XL
- Country of Origin: Taiwan
Technical Specifications
- Brand: Wilkins
- Manufacturer: Wilkins
- Model / MPN: 12-35XL
- Size: 1/2″
- Max Pressure (PSI): 125
- Max Temp (F): 180F
- Application: Plumbing
- Material: Cast Brass
- Height: 2-1/2″
- Connection Type: Female Threaded
- Lead Free: Yes
- Body Material: Cast Bronze
- Domestic / Import: Domestic
- Nominal Size: 1/2 in
- Pressure Rating: 125 psi
- Temperature Rating: 180 deg F
- Type: Anti-Siphon Atmospheric
- Valve Series: 35XL
- Connection Type – Side 1: NPT
- Connection Type – Side 2: NPT
- Body Finish: Rough Brass
- For Media: Water
- Media Temp. Range: 180 F
- Max. Pressure (CWP): 125 psi
- Standards: ASSE Listed 1001; CSA; IAPMO; NSF/ANSI 372
- Protection Type: Back-Siphonage
- Spring Material: Bronze
- Pipe Size: 1/2 in
- Overall Length: 2.5 in
- Flow Rate: 14.5 gpm
- Connection Size – Side 1: 1/2 in
- Connection Gender – Side 1: Female
- Connection Size – Side 2: 1/2 in
- Connection Gender – Side 2: Female
- Includes Atmospheric Vent: Atmospheric Vent Included
- Max. Media Temperature: 180 F
- Seal Material: Buna-N
- Hazard Protection Level: High Health Hazard
- Vacuum Breaker Style: Atmospheric Vacuum Breaker
- Freeze Protection: No
- NSF Standards: NSF/ANSI 372
- Finished: Rough Brass
- Body: Rough Brass Finished Bronze
- UNSPSC: 39121548
