Product Description

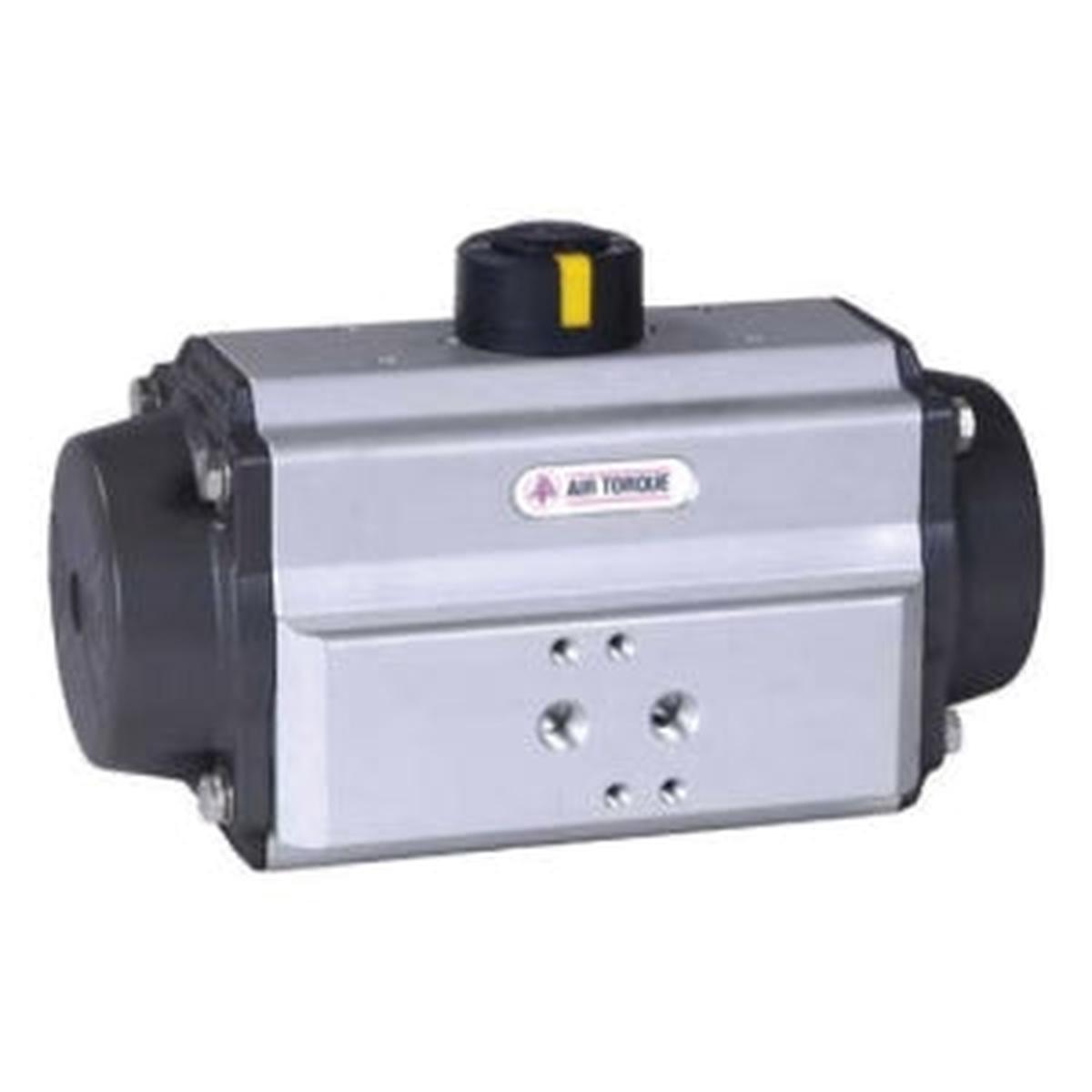

The AIR TORQUE PT350D pneumatic double acting actuator features a special alodur coating created through an electrochemical reaction for enhanced surface hardness and corrosion resistance. This actuator provides a long service life and reduced friction due to its lower surface roughness. It is designed for industrial automation and control systems.
- Housing protected by special anodizing (alodur) inside and out.
- Lids are impregnated and protected by a special anodizing process (alodur).
- Achieves good surface hardness, comparable to hard anodizing.
Product Highlights
Durable pneumatic actuator with alodur coating for corrosion resistance and extended service life in industrial environments.
Product Information
Standard Information
- Brand: AIR TORQUE
- Manufacturer Part Number: PT350D
- Country of Origin: India
Technical Specifications
- Item Name: Pneumatic Actuator
- Pressure Rating: 36 – 116 PSI
- Actuation Time: 0.7 SEC Opening, 0.8 SEC Closing
- Output Torque: 175 FT-LB At 80 PSI
- Body Material: Aluminum
- Finish/Color: Alodur Hard Anodized
- Industry Standards: ISO 5211, DIN 3337 and VDI/VDE 3845
- Temperature Rating: -40 To 176 DEG F
- Length: 11.97 IN
- Width: 5.85 IN
- Height: 5.71 IN
- Additional Specifications: Air Volume: 72.6 CU-IN Opening, 109.8 CU-IN Closing
- Action: Double Acting
- Brand: Air Torque
- Oper. Temp. Range: -20C to 80C For Nitrile Seat (Depending On MOC)
